• 3.55 axle ratio
• Four wheel drive
• Front stabilizer bar
• HD front/rear shock absorbers

• Dual note electric horn

5.9L (359) 24-VALVE I6 CUMMINS DIESEL ENGINE

• dual 750-amp batteries
• diesel message center (w/low fuel/low oil/water in fuel/wait to start/brakes/anti-lock brakes warning lights)
• "Cummins Diesel" nameplates
• diesel sound insulation on inner dash/cowl/floor pads
• engine block heater

• Four Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Dual Rear Wheels
• Steel Wheels
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Power Mirror(s)
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door

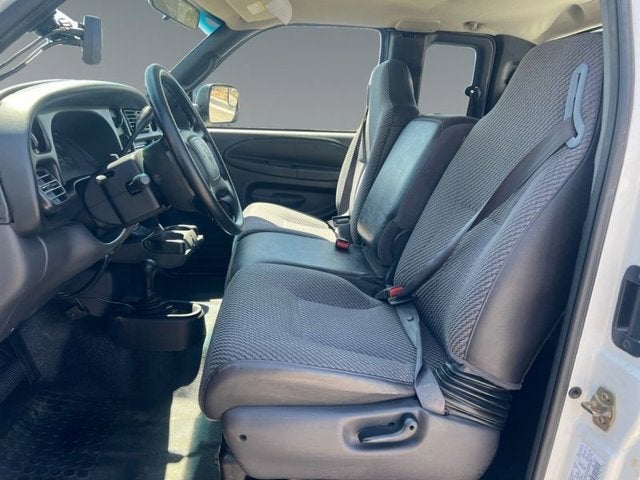

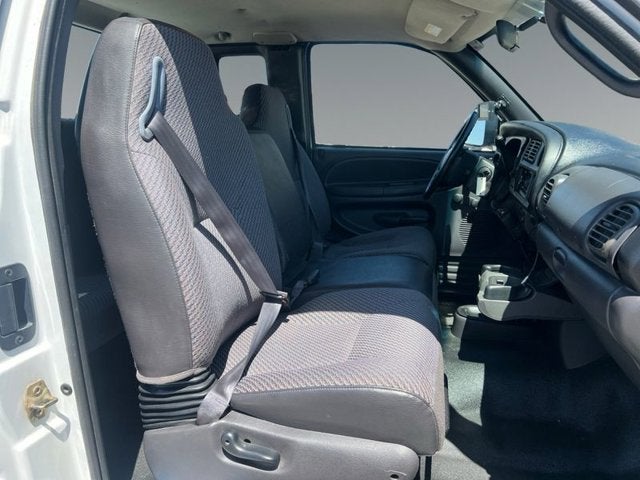

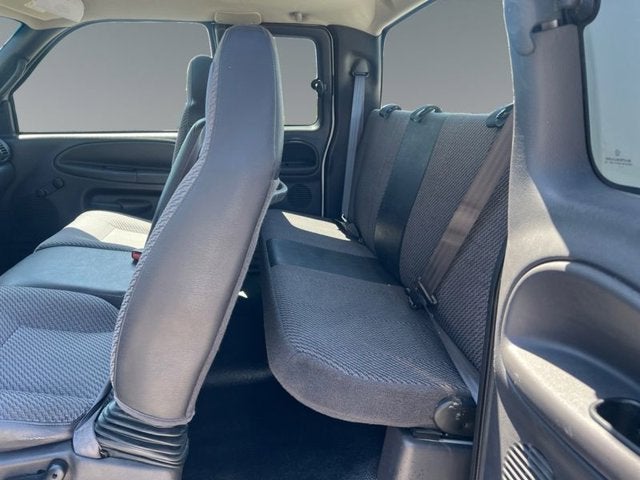

• Vinyl Seats
• Split Bench Seat

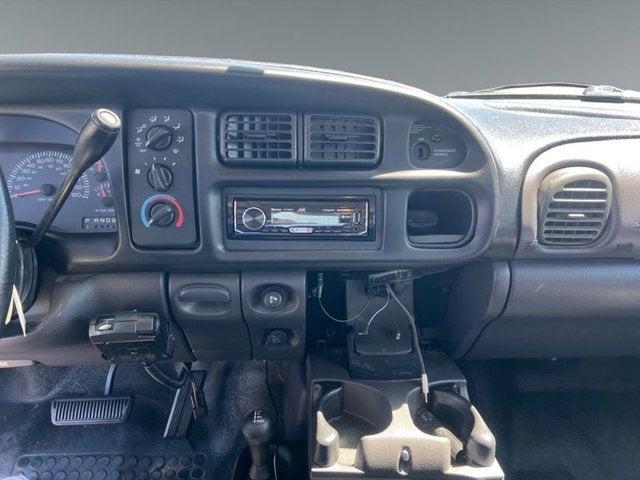

• AM/FM Stereo
• Cassette
• Power Outlet
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• ABS
• 4-Wheel Disc Brakes

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 24.0
• Total Cooling System Capacity (qts): 20.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 7500
• Curb Weight - Front (lbs): 3402
• Curb Weight - Rear (lbs): 2556
• Gross Vehicle Weight Rating Cap (lbs): 11,000
• Gross Combined Wt Rating (lbs): 20,000
• Gross Combined Wt Rating (lbs): 15,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1200
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 7500
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 7500
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.5 x 1.5
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: TSS
• Rear Tire Order Code: TSS
• Spare Tire Order Code: TSS

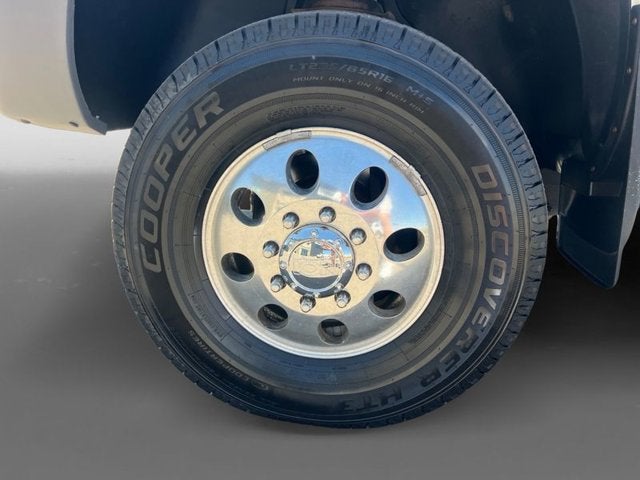

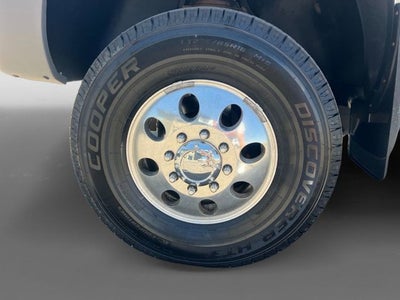

• Front Tire Size: LT235/85R16E
• Rear Tire Size: LT235/85R16E
• Spare Tire Size: LT235/85R16E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.0
• Rear Wheel Size (in): 16 x 6.0
• Spare Wheel Size (in): 16 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 154.7
• Length, Overall w/o rear bumper (in): 240.1
• Width, Max w/o mirrors (in): 93.8
• Height, Overall (in): 77.0
• Overhang, Front (in): 40.0
• Overhang, Rear w/o bumper (in): 47.5
• Front Bumper to Back of Cab (in): 136.9
• Cab to Axle (in): 55.5
• Cab to End of Frame (in): 99.7
• Ground to Top of Load Floor (in): 37.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 16.0
• Ground Clearance, Rear (in): 8.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.5
• Cargo Box Width @ Top, Rear (in): 60.4
• Cargo Box Width @ Floor (in): 64.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.4
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 70.0
• Ext'd Cab Cargo Volume (ft³): 48.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.5
• Front Hip Room (in): 63.6
• Second Head Room (in): 39.4
• Second Leg Room (in): 33.2
• Second Shoulder Room (in): 67.1
• Second Hip Room (in): 65.1
• Summary

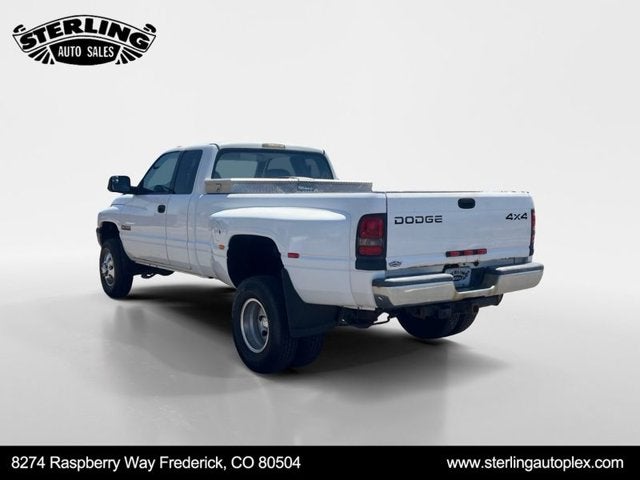

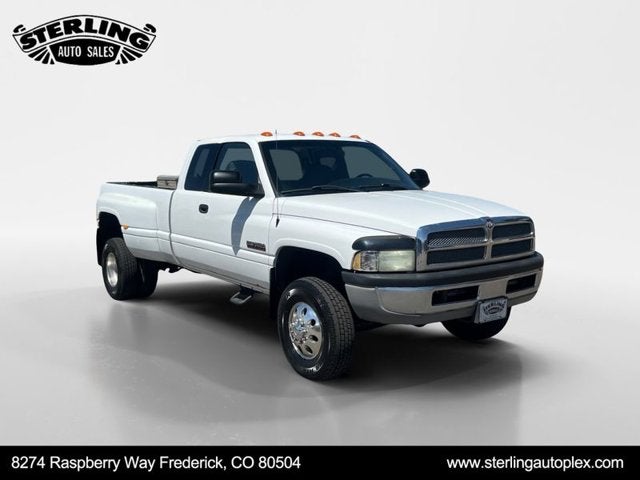

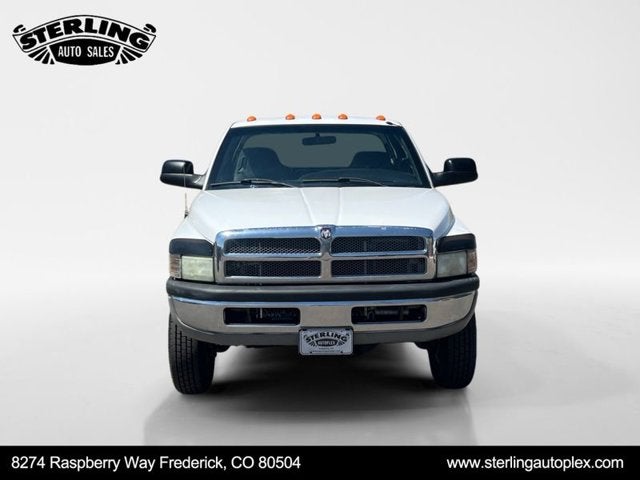

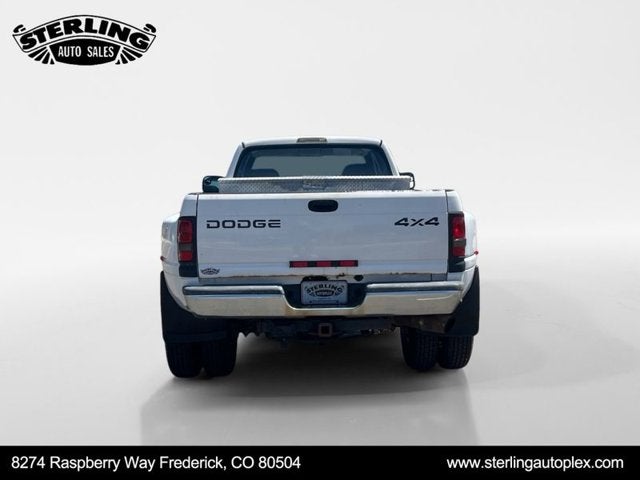

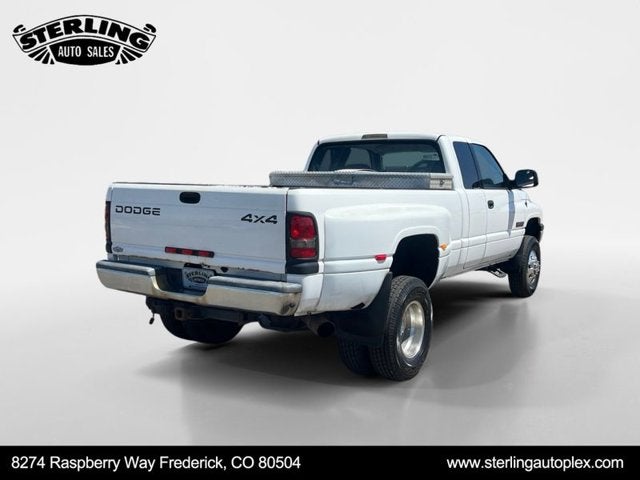

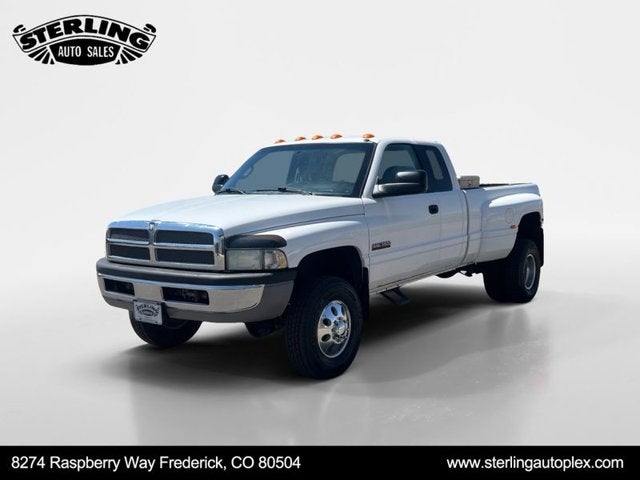

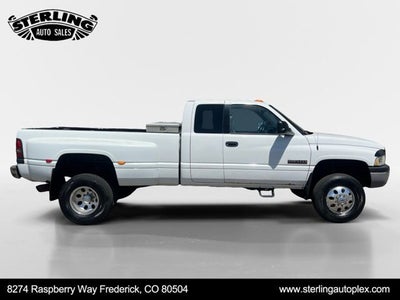

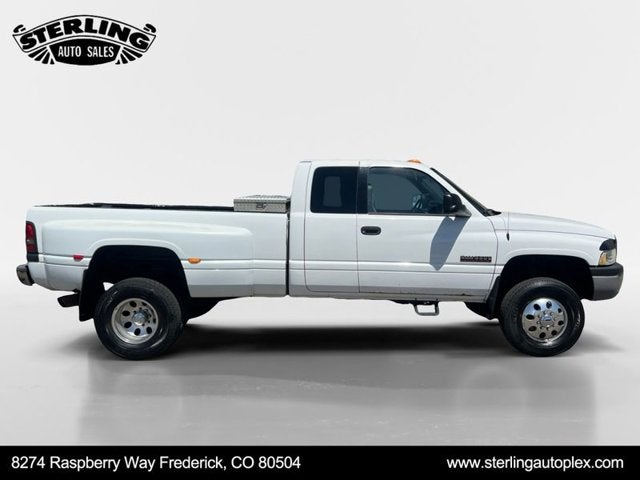

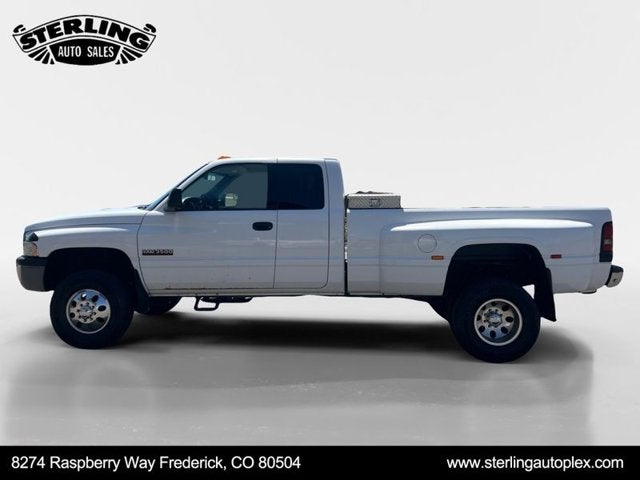

• Vehicle Name: Dodge Ram 3500
• Body Style: Quad Cab 8' Bed
• Body Code: 155" WB
